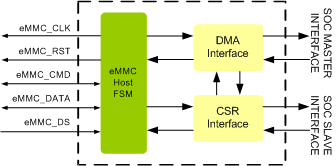

The eMMC Host IIP core supports the SD Host Controller Specification version 6.0 and compatible with the JESD84-B51 Specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. eMMC HOST IIP is proven in FPGA environment. The host interface of the eMMC can be simple interface or can be AMBA APB, AMBA AHB, AMBA AXI, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
eMMC Host Controller IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with JESD84-B50 Specification and earlier versions
- Compliant with JEDEC eMMC CQHCI for Command Queuing
- SD host controller Specification 6.0 compliant
- Supports different data bus width modes : 1-bit, 4-bit, 8-bit.
- Supports Enhanced Strobe
- Supports higher than 2GB densities of memory.
- Supports SDMA,ADMA2 and ADMA3 modes
- Supports send tuning block (CMD21) command
- Supports Single and Dual Data Rate Timing for Read/Write Operations
- Supports HS200 and HS400 Modes.
- Supports Single byte, Single block ,Multi –block(finite and infinite) transfers and MMC
- Supports CRC7 checking for command and CRC16 for Data integrity
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's eMMC HOST IP contains following
- The eMMC HOST Controller is available in Source and netlist products.
- The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
