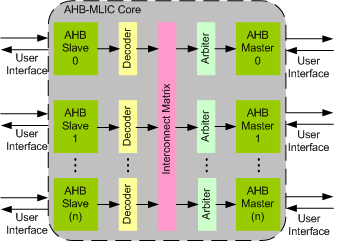

AHB Multilayer Interconnect IP core is compliant with AMBA AHB Specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. AHB Multilayer Interconnect IIP is proven in FPGA and ASIC environment.
AHB Multilayer Interconnect IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with AMBA AHB specification
- Supports configurable number of AHB Master
- Supports configurable number of AHB Slave
- Supports standardized user interface signals for easy integration with any IP
- Supports control logic to map User Interface signals with the AHB signals
- Supports configurable Data and Address Bus
- Supports user-defined Slave to Master mapping
- Supports user-defined Slave address per Master
- Round-robin or priority based arbitration selectable per Slave
- Higher throughput and less arbitration overhead between Masters as arbitration is done at each Slave port
- Supports all protocol transfer types, burst transfers and response types
- Support for all the transfer sizes
- Supports configurable Endianness of the Data bus
- Supports locked transfers
- Supports early burst termination on receiving Error response from Slave
- Supports two cycle error response in Slave
- Supports response generation with wait states in Slave
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to Microprocessor/Microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's AHB MLIC IP contains following
- The AHB MLIC interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
