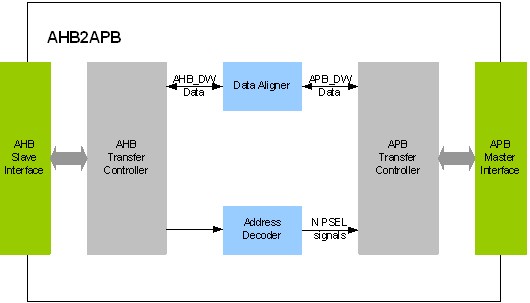

AHB2APB Bridge IP core is compliant with AMBA AHB and AMBA APB Specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices.AHB2APB Bridge IIP is proven in FPGA environment.
AHB2APB BRIDGE IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with AMBA AHB specification
- Compliant with AMBA APB3 , AMBA APB4 specification
- Translates AHB transactions into APB transactions
- Endianness and data widths of both the interfaces are configurable
- Data Phase timeout to send error response when there are no responses from APB
- Accepts pipelining transfer of AHB
- Supports single and fixed size incrementing bursts
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to Microprocessor/Microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's AHB2APB Bridge IP contains following
- The AHB2APB Bridge is available in Source and netlist products.
- The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
