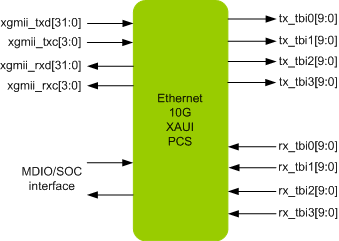

Ethernet 10G XAUI PCS core is compliant with IEEE Standard 802.3.2018 Ethernet specification. Through its Ethernet compatibility, it provides a simple interface to a wide range of low-cost devices. Ethernet 10G XAUI PCS IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses
ETHERNET 10G XAUI PCS IIP is supported natively in Verilog and VHDL
- Features
-
- Supports IEEE Standard 802.3.2018 Clause 48 for XAUI PCS
- Supports 8b/10b encoding on each lane to generate code groups in transmit path
- Supports 10b/8b decoding on each lane to convert received code groups to 32 XGMII data bits and 4 XGMII control bits
- Supports synchronization of code groups on each lane to determine code group boundaries
- Supports deskew of received code-groups from all lanes to an alignment pattern
- Supports conversion of XGMII Idle control characters to (from) a randomized sequence of code-groups to enable serial lane synchronization, clock rate compensation and lane-to-lane alignment
- Supports Loopback Functionality
- Support link fault and error indications
- Supports IEEE Standard 802.3az Energy Efficient Ethernet
- Supports Configurable Management Interface (MDIO(Clause 45) / SOC Bus)
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to Microprocessor/Microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's Ethernet 10G XAUI PCS IP contains following
- The Ethernet interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases.
- Lint, CDC, Synthesis, Simulation Scripts with waiver files.
- IP-XACT RDL generated address map.
- Firmware code and Linux driver package.
- Documentation contains User's Guide and Release notes.
