10G XAUI/10GBase-KX4 Ethernet VIP

The 10G XAUI/10GBase-KX4 Ethernet Verification IP is compliant with IEEE 802.3 specifications and verifies MAC-to-PHY layer interfaces of designs with a 10G Ethernet interface 10G XAUI/10GBase-KX4. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. 10G XAUI/10GBase-KX4 verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethenet product.

10G XAUI/10GBase-KX4 Ethernet VIP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env



Features

  • Follows 10G XAUI specification as defined in IEEE 802.3
  • Follows 10Gbase-KX4 specification as defined in IEEE 802.3
  • Supports backplane auto-negotation for 10GBASE-KX4
  • Supports all types of 10G XAUI/10GBase-KX4 TX and RX errors insertion/detection.
    • Oversize, undersize, inrange, out of range Packet size errors
    • Missing SPD/EPD/SFD framing errors
    • SPD/SFD on wrong lane
    • CRC Error
    • Lane skew insertion
    • Disparity error injection
    • Invalid /D/ and /K/ character injection
    • Variable preamble and IPG insertion

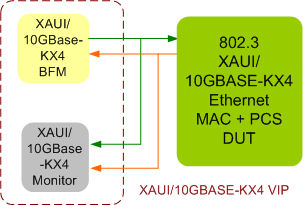

  • Comes with 10G XAUI Tx BFM, 10G XAUI/10GBase-KX4 Rx BFM, and 10G XAUI/10GBase-KX4 Monitor
  • Monitor supports detection of all protocol violations.
  • Supports Pause frame generation and detection.
  • Built in coverage analysis.

Benefits

  • Faster testbench development and more complete verification of 10G XAUI/10GBase-KX4 designs.
  • Easy to use command interface simplifies testbench control and configuration of 10G XAUI/10GBase-KX4 TX and RX.
  • Simplifies results analysis.
  • Runs in every major simulation environment.


10G XAUI Verification Env

SmartDV's 10G XAUI Verification env contains following.

  • Complete regression suite (UNH) containing all the 10G XAUI testcases.
  • Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
