MIPI DBI Verification IP provides an smart way to verify the MIPI DBI bus. The SmartDV's MIPI DBI Verification IP is fully compliant with version 2.0 MIPI Alliance specification and provides the following features.
MIPI DBI VIP is supported natively in Verilog and VHDL
- Features
-
- Supports 2.0 MIPI DBI Specifications.
- Supports Type A, Type B and Type C Interfaces.
- Supports Type 1, Type 2 and Type 3 Architecture.
- Supports all types of Display Command Set types
- Supports Data width of 8, 9 or 16 bits
- Ablity control timing fine grain
- Supports all color formats mentioned in specification
- Supports reading pixel data from text files
- Error Injection
- Reserved bit Error
- Write less number of parameter error
- Write more number of parameter error
- Read less number of parameter error
- Read more number of parameter error
- Color data error
- FIFO depth is programmable
- Callback in BFM and Monitor for wide range of events to help execute user code.
- Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations.
- Status counters for various events in bus.
- MIPI DBI Verification IP comes with complete testsuite to test every feature of MIPI DBI specification.
- Functional coverage for complete MIPI DBI features.
- Benefits
-
- Faster testbench development and more complete verification of MIPI DBI designs.
- Easy to use command interface simplifies testbench control and configuration of Host, Display and Monitor
- Simplifies results analysis.
- Runs in every major simulation environment.

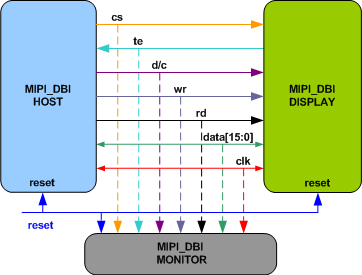

- MIPI DBI Verification Env
-
SmartDV's MIPI DBI Verification env contains following.
- Complete regression suite containing all the MIPI DBI testcases.
- Examples showing how to connect various components, and usage of Host, Display and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
