Interlaken Verification IP

Interlaken Verification IP

The Interlaken Verification IP is compliant with 1.2 specifications and verifies Interlaken interfaces of designs Interlaken Interface. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. Interlaken Verification IP is developed by experts in networking, who have developed networking products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a networking product.

Interlaken Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

Interlaken Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Implemented natively in OpenVera, Verilog, SystemC, Specman E and SystemVerilog.
  • Follows Interlaken specification as defined in Interlaken protocol definition v1.2.
  • Supported RVM, AVM, VMM, OVM, UVM and non-standard verify env.
  • Compliant to Interlaken protocol specification v1.2
  • Compliant to Interlaken look aside protocol 1.1
  • Compliant to Interlaken retransmission extension specification 1.2
  • Compliant to Interlaken Reed-Solomon Forward Error Correction Extension 1.1
  • Compliant to Interlaken Interoperability Recommendations 1.11
  • Compliant to Interlaken Dual Calendar Extension 1.0
  • Supports multi-channel implementation as per the specification.
  • Supports configurable number of serial lanes as per the specification.
  • Supports configurable burst max and burst short sizes.
  • Supports insertion of extra idle to guarantee the avoidance of burst short.
  • Supports scheduling calendar logic in the transmitter to choose the order in which the channels are serviced.
  • Supports optional scheduling enhancement to avoid unused bandwidth by using decision algorithm.
  • Each burst of transmitting data is encapsulated with burst control words before and after the data.
  • Supports configurable metaframe length.
  • Support configurable number of lanes from 1 to 64 lanes.
  • Supports per channel inband and out of band flow control or both.
  • Per-lane CRC-32 insertion into diagnostic words.
  • Per lane skew insertion to test lane alignment.
  • Configurable control to enable or disable the scrambler.
  • 64B/67B encoding with inversion bits controllable.
  • Variable test pattern generation as per specification.
  • Supports test pattern generation and checking
    • Supports PRBS31.
    • Supports PRBS23.
    • Supports PRBS7.
    • Supports User defined pattern
  • Supports very flexible way to test sync and alignment for state machines at startup.
  • Following error injection is supported
    • Receive SerDes loses lock.
    • Receive logic loses word boundary sync.
    • Bad scrambler state.
    • Lane alignment failure.
    • Burst CRC24 Errors.
    • Flow Control Errors.
    • Unknown Control Word Types.
    • Bad 64B/67B Code words.
    • Diagnostic CRC32 Errors.
    • All types of CRC error injection.
    • Invalid coding for all control words.
    • Error injection in metaframes.
    • Short burst error injection.
    • Invalid burst boundary.
    • Test pattern error injection.
  • Comes with Interlaken Tx BFM, Interlaken Rx BFM, and Interlaken Monitor.
  • Supports Interlaken interop recommendations 1.3 and 1.4.
  • Rich set of configuration parameters to control Interlaken functionality.
  • Supports 67 bit bus per lane or 1 bit serial lane to ease the debugging.
  • Supports 80,64,40,32, 20,16,10 and 8 bit per lane serdes interface
  • On-the-fly protocol and data checking.
  • Notifies the testbench of significant events such as transactions, warnings,timing and protocol violations.
  • Complete functional coverage for both normal and error cases.
  • Callbacks in Transmit, receiver and monitor for various events.
  • Status counters for various events on bus.
  • Interlaken Verification IP comes with complete testsuite to test every feature of Interlaken protocol specification.
Benefits
  • Faster testbench development and more complete verification of Interlaken designs
  • Easy to use command interface simplifies testbench control and configuration of Interlaken TX and RX
  • Simplifies results analysis
  • Runs in every major simulation environment
Interlaken Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

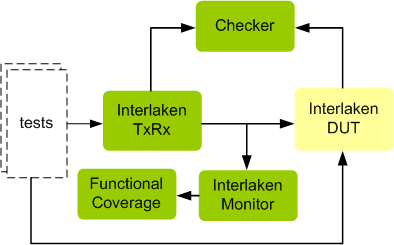

    SmartDV's Interlaken Verification env contains following.

  • Complete regression suite containing all the testcases.
  • Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
