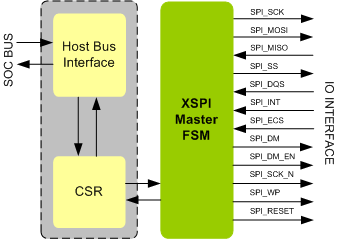

XSPI Master interface provides full support for the two-wire XSPI Master synchronous serial interface, compatible with XSPI specification. Through its XSPI Master compatibility, it provides a simple interface to a wide range of low-cost devices. XSPI Master IIP is proven in FPGA environment.The host interface of the XSPI Master can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
XSPI Master IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with XSPI protocol of JEDEC standard version 1.0 specification
- Support single master and multiple slaves per interface port
- Support source synchronous clocking
- Support Deep power down enter and exit commands
- Support Eight IO ports in standard. Possible to increase IO port based on system performance requirements
- Optional support for Data strobe for write masking
- Support 1-bit wide SDR transfer
- Support profile 1.0 Commands to manage a non-volatile memory device
- Support profile 2.0 Commands to support read or write data for any time of slave devices
- Speed grades with data transfer rates up to
- 400MT/s (200 MHz Clock)
- 333MT/s (167 MHz Clock)
- 266MT/s (133 MHz Clock)
- 200MT/s (100 MHz Clock)
- To support protocol modes:
- 1S – WR –WR
- 4D – 4D – 4D
- 8D – 8D – 8D
- Transaction phases – Command, Address, Latency, Data
- Transfer bit width options in each phase W = 1 or 8
- Data rate options in each phases S for SDR or D for DDR
- Has inbuilt Host controller Interface (DMA Engine)
- Supports legacy SPI Devices on same device
- Fully synthesizable.
- Static synchronous design.
- Positive edge clocking and no internal tri-states.
- Scan test ready.
- Simple interface allows easy connection to Microprocessor/Microcontroller devices.
- Benefits
-
- Single Site license option is provided to companies designing in a single site.
- Multi Sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's XSPI Master IP contains following.
- The XSPI Master interface is available in Source and netlist products.
- The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
