DSC ENCODER core is compliant with standard VESA Display Stream Compression version 1.1/1.2/1.2a. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. DSC ENCODER IIP is proven in FPGA environment. The host interface of the DSC ENCODER can be simple interface or can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.
VESA DSC Encoder IIP is supported natively in Verilog and VHDL

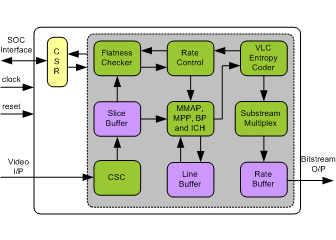

- Features
-
- Compliant with VESA Display Stream Compression Version 1.1, 1.2 and 1.2a.
- Full DSC Encoder functionality.
- Supports below coding schemes,
- Modified Median-Adaptive Prediction (MMAP)
- Block Prediction (BP)
- Midpoint Prediction (MPP).
- Indexed color history (ICH)
- Supports RGB/YCbCr 4:4:4, YCbCr 4:2:2 simple, YCbCr 4:2:2 native and YCbCr 4:2:0 native coding.
- Supports 8, 10, 12, 14 and 16 bits per component.
- Supports programmable compressed bit rate of 8bpp and higher (6bpp and higher for 4:2:0 pictures)
- Supports 1, 2, 4, 8, 12, 16, 20, 24 Slice decoding
- Supports backward compatible to DSC v1.1
- Configurable maximum display resolution up to 8K.
- Supports Output Buffering compatible with transport stream over video interfaces like HDMI2.1, MIPI DSI and DisplayPort.
- Verified with VESA DSC 1.2a C model using sample images.
- Supports PPS 128 bytes block decoding.
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's DSC ENCODER IP contains following
- The DSC ENCODER interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
